USB2.0母座7.0前 后二脚插件

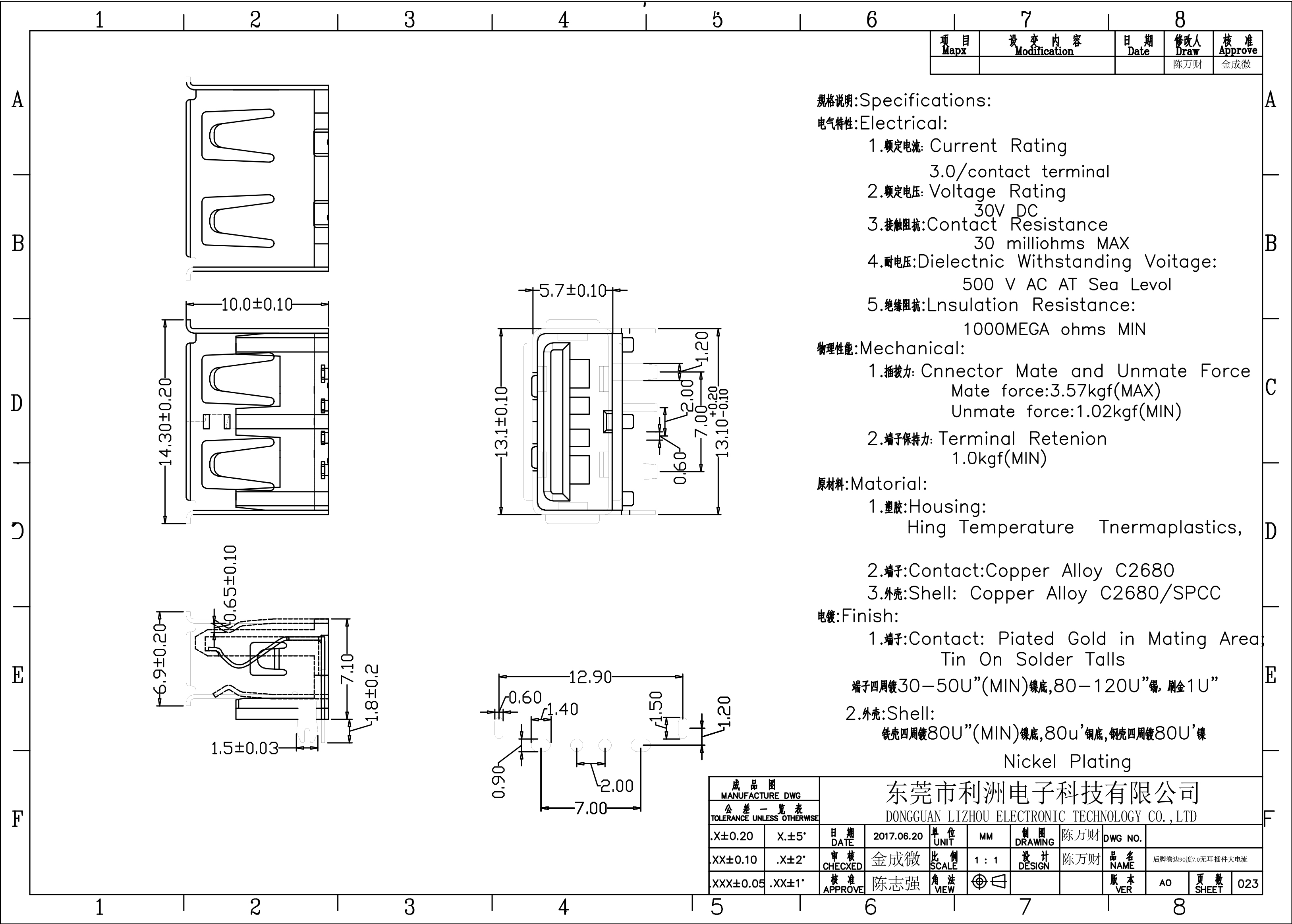

    技术参数:

    Current Rating: 3.0/contact terminal

    Voltage Rating: 30V DC

    Contact Resistance: 30 milliohms MAX

    Dielectnic Withstanding Voitage: 500 V AC AT Sea Levol

    Lnsulation Resistance: 1000MEGA ohms MIN

    Cnnector Mate and Unmate Force: Mate force:3.57kgf(MAX) Uumate force:1.02kgf(MIN)

    Terminal Retenion: 1.0kgf(MIN)

    Housing: Hing Temperature Tnermaplastics

    Contact: Piated Gold in Mating Area; Tin On Solder Talls

    Shell: Copper Alloy C2680/SPCC
