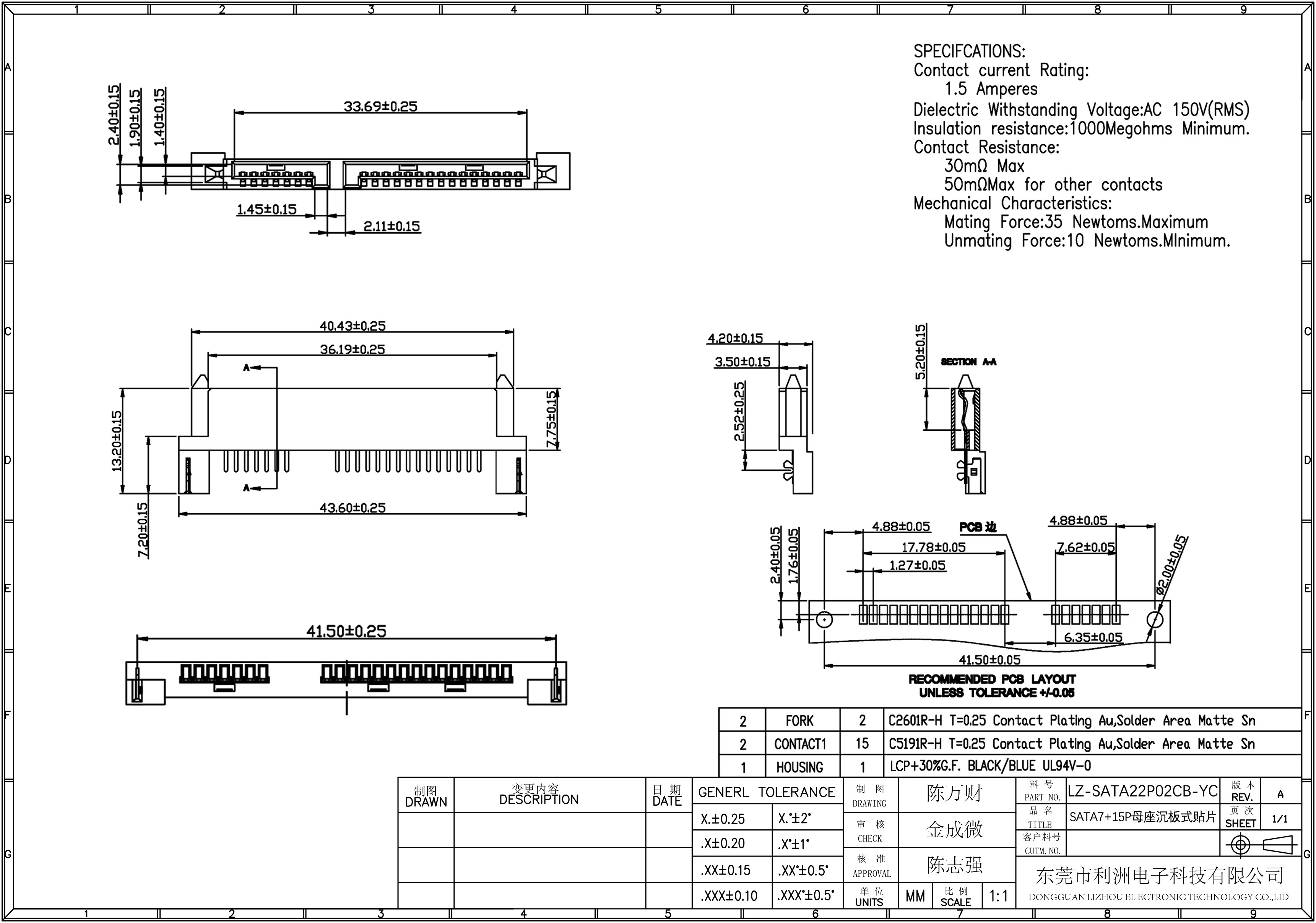

• SATA7+15P母座沉板式贴片

    技术参数:

    Contact Current Rating: 1.5 Amperes

    Dielectric Withstanding Voltage: AC 150V(RMS)

    Isulation resistance: 1000 Megohms Minimum

    Contact Resistance: 30mΩ Max 50mΩ Max for other contacts

    Mating Force: 35 Newtoms Maximum

    Unmating Force: 10 Newtoms Minimum
